Yes Portable Handheld Rapid Heart Rate Detector ECG Monitor Machine With ECG Cable

Yes Portable Handheld Rapid Heart Rate Detector ECG Monitor Machine With ECG Cable
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Grundinformation
Zahlung und Versand AGB
Produkt-Beschreibung
Products Description

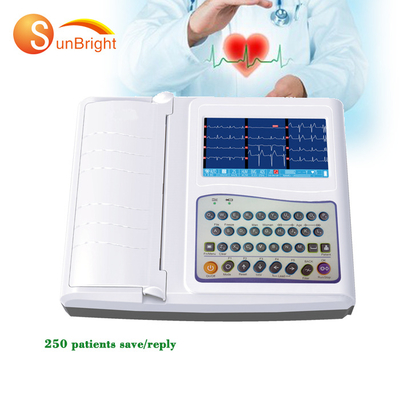

Portable handheld rapid heart rate detector ECG monitor machine with ECG cable
ECG machine SUN-8121 is digital 12 channel physiological function measurement equipment which records the heart waveform during electro-biological movement. It provides sufficient information on the analysis of arrhythmia and cardiovascular disease, helps to know the pathological disorder caused by some drugs and electrolyte, or unbalance of PH value. It is important equipment for cardiac disease examination, and its compact size makes it suitable for use while visiting patients at home.
Physical Specifications:

FAST DESCRIPTION

Portable 12 channel ECG machine Work modes: Manual/Auto/Arrhythmia analysis modes 7 inch colour LCD with Alphabet keyboard Alphabetic keyboard for patient information Built in rechargeable Li-ion battery Adaptor 110-230V, 50/60Hz AC power supply Real-time ECG waveform, 250 patients save/replay Built in USB/RS232 interface(ECGNET software Optional)
Physical Specification
* Lead standard 12 leads
* Calibrating voltage: 1mV±2%
* Voltage tolerance: ≥±500mV
* Inter-channel interference:≤0.5mm
* Frequency response: 0.05~160Hz(-3db)
* Patient current leakage: <10μA
* Noise level: <15μVp-p
* Sensitivity valve: ≤20μV
* Paper speed:6.25,12.5, 25,50mm/s(±3%)
* Time constant: ≥3.2s
* Input dynamic range: ±10Vpp
* Filter: AC flter: 50Hz / 60Hz ,EMG filter: 25Hz / 45Hz ,Anti-drift filter: 0.15Hz(Adaptive)
* Sensitivity: 5,10,20mm/mV
* CMMR: ≥120dB (with AC filter
* Input impedance: ≥50MΩ
* Input circuit current:≤0.05μA
* Work mode: MAN,AUTO,ANALYSIS modes
* Lead acquisition12bit/1000Hz(synchronously 12 leads)
* Input circuit: floating; protection circuit against defibrillator effect

Standard Configuration:
Patient cable 1 set
Limb electrode 4 sets
Chest elelctrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor 1 set
